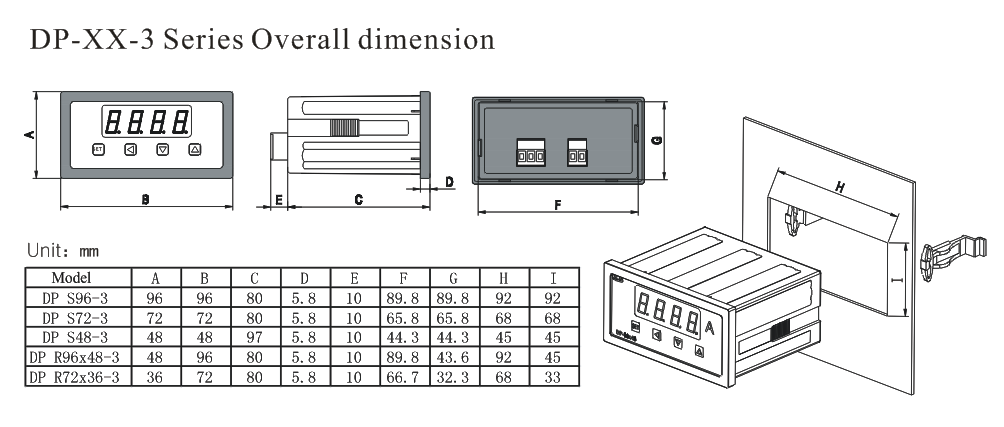

Name of produc：DP-96X48-3 Single-phase AC Ammeter
Category Digital Ammeter > DP-XX-3
Model DP-96X48-3 Single-phase AC Ammeter
Optional Function:RS485 communication Modbus-RTU protocol, Switching input,
Switching output ,Analog output
Technical Data
Accuracy: Current accuracy class 0.5
Parameters:
Rated current: AC 5A、AC 1A.
Overload Rating: 1.2X rating (continuous) 2X rating for 1 seconds.
Internal resistance: ＜200mΩ(for non-mA/mV inputs only)。
Frequency:45~65Hz.
Auxiliary Power Supply:
AC/DC 48~240V、AC/DC 80~265V、AC 380V、AC 220V、AC 110V、AC 60V
Display Features:
High-brightness display.
Display data full range 1-9999 arbitrary variable settings.
Display “HHHH”, when data over 1.4 times the full range.
Optional Function:
Communication function:1 RS485 communication, Modbus-RTU protocol,
the baud rate is 1200,2400, 4800, 9600, 19200, 24000, 38400bps can be set.
Passive Status Collection: Support four-way Passive Sensor status collection.
Status/Control Signals: support four-way output voltage output (5V),2 way alarm relay output (contact: AC250V/5A, DC30V/5A).
Analog output: support 1-way Analog output conversion 4~20mA or 0~5V.
Operating Environment:
Operating temperature:-10℃~+55℃
Storage temperature:-25℃~+70℃
Relative humidity≤93%，Non corrosive gas
Safety Performance:
Insulation resistance:＞100MΩ
AC withstand voltage:＞AC 2000V
EMC:
ESD: Level 4
Surge: Level 4
RF: Level 3
EFT: Level 3
Signal
Wiring Diagram:
